■Type PH (with a water film plate and high opening)
Type PH Parker Scrubber Booth

Product features

  1. 1. Through an abundance of water used as a water curtain, paint mist is hit by the water surface. This prevents paint from adhering to the section in front of the curtain, and that section is kept clean.
  2. 2. Mist removal efficiency is 99% or higher. (Experimental value)
  3. 3. To prevent problems such as pump or pipe clogging, the suction and filter sections are designed to be large enough in size and the scrubber water level is kept constant.
  4. 4. As a working chamber for passing the conveyor can be installed and expanded easily, this product is best for automatic painting lines. (Additional panels need to be ordered separately.)
  5. 5. A corrosion-resistant booth made of ZAM material.

Type PH Parker Scrubber Booth

Accessories
Plastic boxed operation board U-shaped manometer PWW200
Option
Light Increased safety explosion-proof type direct-mounted light (two lights) / embedded light (up to three lights)

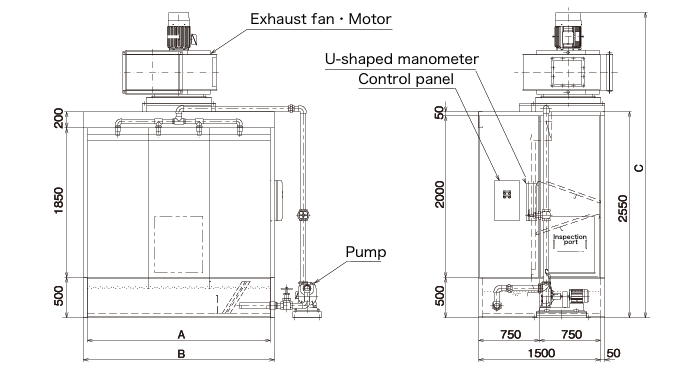

Specifications

Booth model PSB-150PH PSB-225PH PSB-300PH PSB-375PH
AC frequency 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz
Main booth unit Booth Booth frontage(mm) A内寸 1500 2250 3000 3750
B外寸 1600 2350 3100 3850
Height (mm) 2550
Depth (mm) 1550
Main material / Standard paint color ZAM high corrosion-resistant hot-dipped steel plate, t = 1.6 / Not painted
Tank Height(mm) 500 (Inside dimension is 450 mm)
Main material / Standard paint color SS steel plate, t = 2.3 / Silver
Exhaust fan Model (#) 4 3 1/2 4 4 1/2 4 4 1/2 4
Discharge port diameter (mm) Length 440 385 440 495 440 495 440
Width 650 570 650 730 650 730 650
Overall fan height（mm） 970 923 1130 1158 1130 1188 1130
Air volume（m3／min） 120 190 250 280
Static pressure (Pa) 980
Motor (kW) (Note 1) Type E totally enclosed fan-cooled motor (Standard) / Increased safety explosion-proof type (Option)
3.7 5.5 7.5 11
Standard paint color 7.5BG5/1.5
Pump Motor (kW) (Note 1) Type E totally enclosed fan-cooled motor (Standard) / Increased safety explosion-proof type (Option)
0.75 1.5
Pipe diameter (⌀) 50 65
Standard paint color/td> 2.5PB4/2
C　Overall height（mm） (Note 2) 3620 3573 3780 3808 3780 3838 3780
Estimated total weight (kg) Product weight 800 + Water weight 800 Product weight 950 + Water weight 1,200 Product weight 1,200 + Water weight 1,600 Product weight 1,400 + Water weight 2,000
(Note 1) Motor: 200V-50/60Hz-4P (Note 2) Although the overall height is the dimension of totally enclosed fan-cooled motor, it varies depending on the manufacturer.

The specifications can be changed as requested by customers. For details, please contact our consultation service (offices).
