E-COAT EQUIPMENT
This equipment deposits paint by immersing the work into the e-coat bath and applying the voltage between the work and anodes in the bath
Our e-coat equipment has features of equal film thickness and high throwing power. Small amount of paint carry over and shortened baking process are also advantages of our system.
■Efficient system to reduce foreign particles causing e-coat defects
【Features of the PMT counter flow system】 （PMT:Parker Magic Turn）
Complete counter flow for body passage
The counter flow against the car body travel in the e-coat tank (Patent: No. 336692） pushes the foam and floating dusts to the backside of the body quickly, which prevents the re-adhesion of the foam.
Well configured tank for efficient dusts recovery
【Outlook of PMT counter flow system】
■Smooth production through simple maintenance and management
We can provide various types of anodes according to customer’s request.

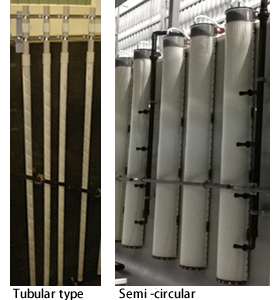

Tubular type
Most common type having following features:
- Light and easy maintenance(No hoist required)
- In case of membrane breakage, the production is still possible by stopping the anolyte circulation of the faulty anode only.
Semi-circular type
Fewer quantity of anodes. The management of anolyte flow and leakage is easier.
■Film deposition for the required position just as thick as required
The PEDEC system stands for Parker Electro DEposition Control, with which individual switching of all anodes of the e-coat equipment. This system enables partial film thickness control of the work by switching anodes according to the type and configuration of the work.

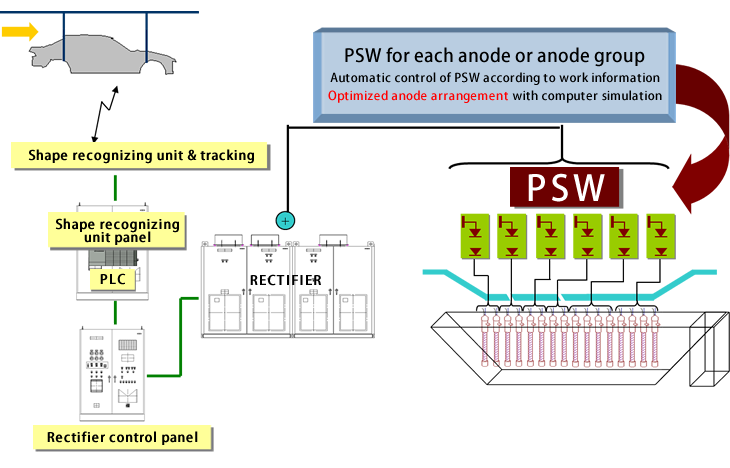

Configuration of PEDEC
■Proposal to achieve sufficient anti-rust performance fitting customer’s needs
It was common to apply spray painting or powder coating without e-coat in non-automotive industries. However, the demand for high anti-rust performance is increasingly high recent years therefore quite a few customers tend to adopt e-coat process.
