■Manual Gun GX141Achieves both superior operability and enhanced functionality!

Characteristics

-450 g in weight – the lightest among our products
-Not only it is light in weight but also achieves good gravity center balance.
-The remote switch located on the back surface enables increase/decrease of discharge rate and air purge.
-An ion trap is available as an option. Effective in heavy film coating and enhancement of beautifulness.
-The gun cable is detachable.

Remote switch

■ Pulse Power 9000 S/TS (Twin Gun Type) Series Fuel Hopper Type Manual Guns
Easy to clean after use!

Characteristics

-The powder hopper capacity is 60 L, which can load a carton (15 kg) of powder.
-The round-shaped hopper enables easy disassembly and cleaning.
-Changeable to the twin gun type.

■Pulse Power 9000 B/TB (Twin Gun Type) Series Box Feed Type Manual Guns
Innovative box feed type!

Characteristics

-A powder box can be placed directly on this product to discharge powder using the vibration table and BF tube.
-As only the BF tube and injector need to be cleaned when changing powder colors, this product is suitable for small lots/color changes.
-Changeable to the twin gun type.

■Pulse Power 9000 K Agitation Hopper Model Coating can be performed even with a small amount of powder!

Characteristics

- Powder hopper capacity: 30 L
-As there is no need for powder flow, coating can be performed even with a small amount of powder, without using an air exhaust hose.
-As the angle of the agitation hopper can be changed during cleaning, color change can be conducted in a short time.

■Pulse Power 9000 CS Series Manual Guns for Laboratories Very easy-to-use Manual guns for laboratories!

Characteristics

-Powder cup capacities: 380 cc / 500 cc
-Best for use in preparation of coating samples.
-As the powder cup is self-supporting, the gun can be handled easily and suitable for prototyping.

■GX541 (Types A and B) Corona Charging Type Auto Guns　Two types to choose from depending on the application!

Characteristics

-Type A is designed taking into consideration its cleanability at time of color change.
-Type B is compatible with special mounting, such as coating robots and fixed guns.
-Gun length:　350 mm

■GX532 Corona Charging Type Auto Gun　A compact gun with an overall length of 225 mm!

Characteristics

-A short barrel gun that is best for mounting in narrow spaces.
-Also effective to use with coating robots.

■GX395 Digital Controller　Equipped with advanced Pulse Power!

Characteristics

-The upgraded air circuit keeps comfortable powder discharge conditions from low to high volume range.
-The accuracy of total air volume management was also improved.
-The controller is equipped with evolved New Pulse Power.
The charging mode can be selected from among four types: Mode A, Mode B, Mode R, and continuous charging.

■Pulse Power 9000M Auto Gun Unit (Standard Model)　High performance even in the basic model!

Characteristics

-Up to eight guns can be mounted.
-A basic type of auto gun unit.
-The powder hopper capacity is as large as 220 L.
-Adding a communication board becomes compatible with IoT.
-Adding a communication board becomes compatible with IoT.

■Pulse Power 9000M-JF/AF Auto Gun Unit (Constant Powder Feeding System)　
Advanced unit incorporating our original technology!

Characteristics

-This model is equipped with our original technologies, which are a constant Powder feeding system that enables color change, “Just Feed,” and a screw type constant powder feeding system that achieves excellent powder feeding accuracy, “Ace Feed.”
-Connecting with “LEAPS” enables the monitoring of actually measured discharge amount relative to a preset discharge, which facilitates easy enhancement of film quality and traceability control.
-As the discharge amount can be controlled numerically (g/min), the management of coating conditions becomes easier, and it is also effective in reducing powder usage.

Color change booth

View more details

Parker Color Change Booth (P-CCB) / (Seller) Moderate price / (Buyer) Affordable price

• Creating air flow on the booth floor surface prevents adhesion of powder and shortens the time required for color change.
• This is a powder color change system with a simplified and uncomplicated structure that can handle multiple colors.

Situation of operation in spray booth

View more details

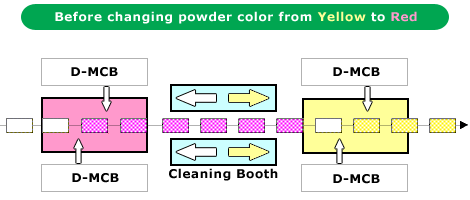

1. Characteristics of the Twin Divide Multi-Color Booth

• Two sets of DMCBs that are arranged in series in the line operate alternately.
• The DMCB that finished the coating operation is cleaned offline and prepares for the coating of the next color.
• It takes approximately 15 minutes to clean the DMCB offline and prepare for the next color.
• This system is best for a conversion from current solvent line to powder coating.

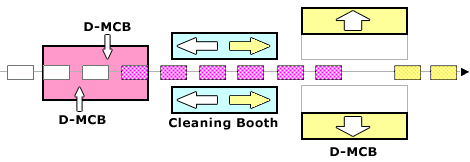

2. “Divided Multi-Color Booth” that enables the transfer of the booth that finished coating operation off the line during continuous coating

1. Hovering the mouse over the buttons switches the images.
2.
3.
4.

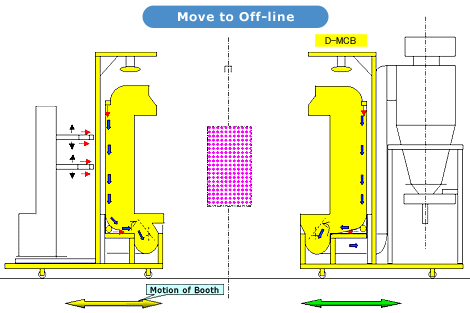

• The DMCB that can be divided into right and left sections can be moved off the line at any time during continuous coating operation.
• This system is a labor-saving line that has eliminated the need for the attachment/detachment of the hanger, that is a burdensome task, during color change.
• The enclosed space, created by the cleaning booth coupled with the booth that finished the coating operation, is cleaned manually, and the powder is collected by the dust collecting machine.

“Twin Divide Multi-Color Booth System” Lines equipped with this system can achieve an operation rate that is even equal to solvent lines.

• The coating operation suspension periods at time of color change are as follows:
  The coating operation suspension periods at time of color change are as follows:
  At a conveyor velocity of 5 m/min. -> Approximately 25 seconds
• To prevent the first or last workpiece from being coated in the previous or next color at time of color change, the workpieces that are within the range of approximately two meters in length are not coated. The coating operation is suspended during that time.

Color change method	coating suspension period/time	Color change frequency/8 hr	Suspension period/8 hr	Operation rate
Single C-MCB	15 minutes	20 times	300 minutes	37%
Twin C-MCB	3 minutes	20 times	60 minutes	87%
Twin D-MCB	1 minute	20 times	20 minutes	96%

Compact Booth

Booth for Precoated Metals

■Just Feed (JF) Constant Powder Feed System with Feedback Control Function

Just Feed is suitable for customers whose focus is color change performance!
An auto gun model equipped with Just Feed (JF)

■Ace Feed (AF) Screw Type Constant Feeding System

Ace Feed is the first choice if long-term stable supply performance is the priority!

■Powder Jam Detector II Easy to measure and acquire data!

Characteristics

-The powder transfer condition is measured with the microwave method
-Compact in size and light in weight
-Alarms can be output by determining the condition where a powder transfer path is about to be clogged.

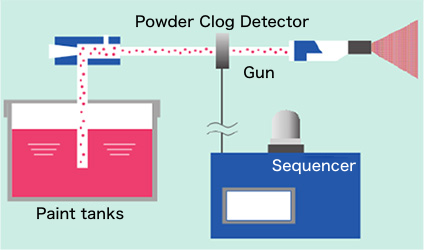

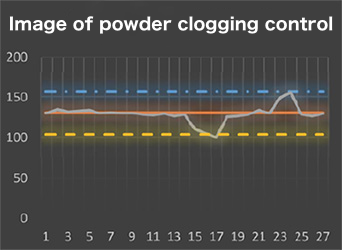

Placing this product in the configuration as shown in the above figure enables the measurement of powder flow rate and digitalization of transfer amount.	Using the data that can be obtained using this powder jam detector enables various types of controls other than alarms.
