■ Type B (with legs)
Product features
- This model is the most compact bench type booth with legs.
- A turntable can be mounted on it.
Specifications

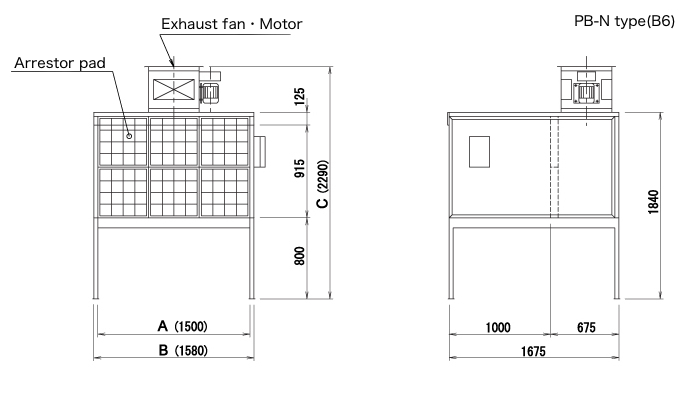

| Booth model | PBB | PBB-4 | PBB-6 | |
|---|---|---|---|---|
| Main booth unit | Booth frontage (mm) | A:Inside dimension | 1000 | 1500 |
| B:Outside dimension | 1080 | 1580 | ||
| Height (mm) | Paint booth | 1840 | 1840 | |
| Prenum chamber | 1840 | 1840 | ||
| Overall height | 2290 | 2290 | ||
| Depth (mm) | Paint booth | 1000 | 1000 | |
| C Overall | 1675 | 1675 | ||
| Exhaust fan and motor | Discharge port diameter | ΦＡ | 400 | 500 |
| Height | (mm) | 450 | 450 | |
| Air volume | m3／min | 40 | 60 | |
| Static pressure | Pa | 147 | 147 | |
| Motor (Note 1) | kW | 0.4 | 0.4 | |
| No. of Arrestor sets | Ｈ×Ｗ | 2 x 2 = 4 sets | 2 x 3 = 6 sets | |
| Accessories | Switch box | Included | Included | |
| Increased safety explosion-proof type direct-mounted fluorescent light | 40 W x 2 lights | － | － | |
| Static pressure meter (Manometer) | Option | Option | ||
| Total weight | Kg | 170 | 200 | |
The specifications can be changed as requested by customers. For details, please contact our consultation service (offices).
