■Type EH Parker Scrubber Booth
パーカー・スクラバーブースEH型

Product features

  1. This is a model designed based on the Type E with increased overall height.
  2. As a working chamber for passing the conveyor can be installed and expanded easily, this product is best for automatic painting lines. (Additional panels need to be ordered separately.)
  3. This is a corrosion-resistant booth made of ZAM material.

パーカー・スクラバーブースEH型

Accessories
Plastic boxed operation board U-shaped manometer PWW200
Option
Light Increased safety explosion-proof type direct-mounted light (two lights) / embedded light (up to three lights)

Specifications

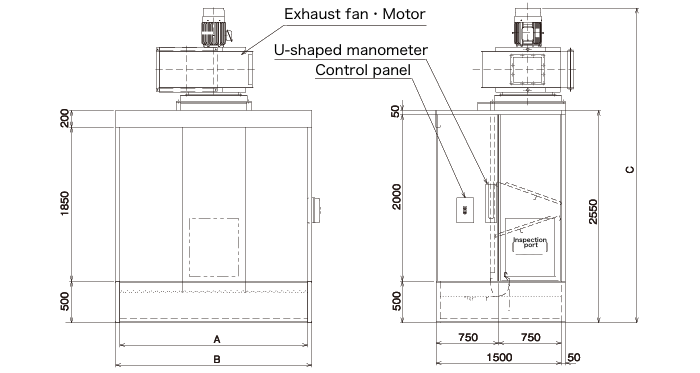

Booth model PSB-150H PSB-225H PSB-300H PSB-375H
AC frequency 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz
Main booth unit Booth Booth frontage(mm) A:Inside dimension 1500 2250 3000 3750
B:Outside dimension 1600 2350 3100 3850
Height (mm) 2550
Depth(mm) 1550
Main material / Standard paint color ZAM high corrosion-resistant hot-dipped steel plate, t = 1.6 / Not painted
Tank Height (mm) 500(Inside dimension is 450 mm)
Main material / Standard paint color SS steel plate, t = 2.3 / Silver
Exhaust fan Model (#) 4 3 1/2 4 3 1/2 4 4 1/2 4
Discharge port diameter （mm） Length 440 385 440 495 440 495 440
Width 650 570 650 730 650 730 650
Overall fan height （mm） 970 923 1130 1188 1130 1158 1130
Air volume（m3／min） 120 190 250 280
Static pressure (Pa) 980
Motor (kW) (Note 1) Type E totally enclosed fan-cooled motor (Standard) / Increased safety explosion-proof type (Option)
3.7 5.5 7.5 11
Standard paint color 7.5BG5/1.5
C Overall height（mm） (Note 2) 3620 3573 3780 3808 3780 3838 3780
Estimated total weight (kg) Product weight 650 + Water weight 800 Product weight 800 + Water weight 1,200 Product weight 950 + Water weight 1,600 Product weight 1,200 + Water weight 2,000
(Note 1) Motor：200V-50/60Hz-4P (Note 2) Although the overall height is the dimension of totally enclosed fan-cooled motor, it varies depending on the manufacturer.

The specifications can be changed as requested by customers. For details, please contact our consultation service (offices).
