■ Type FH (with a high opening)
Product features
- This is a model based on the “Type F,” which is the basic Arrestor Booth model, with a high opening.
- It can be upgraded to suit your needs. In addition, various filters can be selected according to the applications.
- To prevent intensive clogging of the filter, this model is equipped with a pre-rolled filter as standard.
- This model is made of highly corrosive-resistant ZAM material.
| Accessories | |
|---|---|
| Equipped with an On/Off button, electromagnetic switch | |
| Option | |
|---|---|
| Manostar gauge / manometer | |
| Light | Increased safety explosion-proof type direct-mounted light (two lights) / embedded light (up to three lights) |

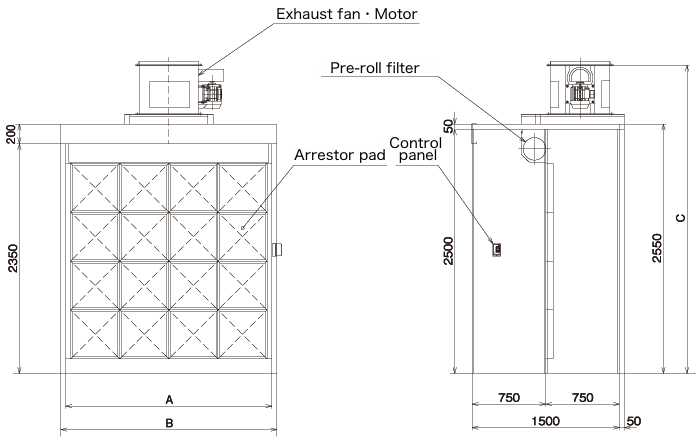

Specifications
| Booth model | PFB-1500H | PFB-2000H | PFB-2500H | PFB-3000H | PFB-3500H | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Main booth unit | Booth frontage(mm) | A:Inside dimension | 1600 | 2100 | 2600 | 3100 | 3600 | |||||
| B:Outside dimension | 1700 | 2200 | 2700 | 3200 | 3700 | |||||||
| Height (mm) | 2550 | |||||||||||
| Depth (mm) | 1550 | |||||||||||
| Main material / Standard paint color | ZAM high corrosion-resistant hot-dipped steel plate, t = 1.6 / Not painted | |||||||||||
| Exhaust fan | Discharge port diameter(ΦA) | 600 | 700 | 800 | ||||||||
| Overall fan height(mm) | 500 | 600 | 650 | |||||||||
| Air volume(m3／min) | 130 | 160 | 210 | 250 | 290 | |||||||
| Static pressure (Pa) | 245 | |||||||||||
| Motor (kW) (Note 1) | EType E totally enclosed fan-cooled motor (Standard) / Increased safety explosion-proof type (Option) | |||||||||||
| 2.2 | 3.7 | |||||||||||
| Standard paint color | 7.5BG5.5/2.5 | |||||||||||
| Exhaust filter | Arrestor set | 3 rows x 4 lines = 12 sets | 4 rows x 4 lines = 16 sets | 5 rows x 4 lines = 20 sets | 6 rows x 4 lines = 24 sets | 7 rows x 4 lines = 28 sets | ||||||
| Pre-rolled filter | #150H (1,500 x 50 m x 1 pc) | #100H (1,000 x 50 m x 2 pc) | #150H (1,500 x 50 m x 1 pc) | #150H (1,500 x 50 m x 2 pc) | #150H (1,500 x 50 m x 1 pc) | |||||||
| Model (Dimension) | #100H (1,000 x 50 m x 1 pc) | #100H (1,000 x 50 m x 2 pc) | ||||||||||
| C Overall height（mm） | 3152.3 | 3252.3 | 3302.3 | |||||||||
| Total weight（Kg） | 360 | 420 | 480 | 560 | 630 | |||||||
(Note 1) Motor:200V-50/60Hz-4P
The specifications can be changed as requested by customers. For details, please contact our consultation service (offices).
