Paint Booth and Air Supply Unit

In the paint shop, the booth is the most important equipment where the paint is applied to the job. The paint booth and the air supply unit consume approximately 60% of the energy in the entire paint shop. Therefore the performance of the equipment has a large effect on the quality and energy performance of the paint shop as a whole.

Parker Engineering provides the advanced equipment with drastic energy savings such as the latest waterborne 3C2B process and a recirculated air system with EcoDryScrubber, a technology for the dry separation of paint overspray.

border 2color Paint Booth and Air Supply Unit

Exhaust recycle system

Energy savings with air recycling

Fresh air is supplied to the manned process and the exhaust is recycled to the automatic process. We can offer various systems that improve the recycling rate.

asu1 Paint Booth and Air Supply Unit

Example of exhaust recycle

page top Paint Booth and Air Supply Unit
border 2color Paint Booth and Air Supply Unit

Heat pump

Energy savings and reduced CO2 emission with the heat pump

The water-borne paint is increasingly used in the automotive industry recent years. After application of water-borne paint, the flash-off process, which required energy savings, follows. We can offer a very energy efficient equipment through the direct expansion type heat pump system (cooling media directly transferred to the heat exchanger) (Patent pending)

heatpompu2 Paint Booth and Air Supply Unit
Example of direct expansion heat pump
heatpompu1 Paint Booth and Air Supply Unit
Use of heat pump in ordinary flash off
page top Paint Booth and Air Supply Unit
border 2color Paint Booth and Air Supply Unit

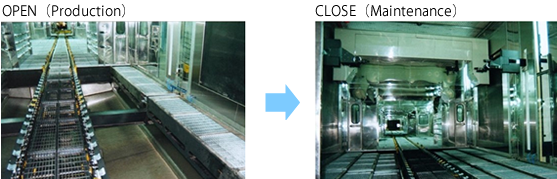

Automatic retractable grating

This equipment is mainly used for the robot zone of the paint booth.When the production is ongoing, gratings are stored at the edge of the spray room to prevent the overspray from adhering to the gratings.
When the production is stopped (maintenance) the gratings are extended towards the center for the convenience of the maintenance.


sunoko2 Paint Booth and Air Supply Unit
page top Paint Booth and Air Supply Unit
border 2color Paint Booth and Air Supply Unit

Paint sludge recovery system

Recovery system for floating/spreading paint sludge
capable of water borne & solvent borne

We propose a paint sludge recovery system with chemical as a measure to extend the lifespan of circulation water of the water scrubber booth.
We design the booth according to the custom-made chemical and can propose an optimized equipment for your production line.
toryou1 Paint Booth and Air Supply Unit
A Parker Group company, Parker Corporation has developed CF agent (Crazy Flock), which offers the advantages of high speed condensation, high speed floating separation and high speed dehydration. Trials using your paint is possible at Matsubuse Plant of Parker Corporation.

toryou2 Paint Booth and Air Supply Unit

toryou3 Paint Booth and Air Supply Unit

logo Paint Booth and Air Supply Unit

aicon circle yajirushi Paint Booth and Air Supply UnitClick here for Parker Corporation CF agent

page top Paint Booth and Air Supply Unit
border 2color Paint Booth and Air Supply Unit

Dürr EcoDryScrubber

The innovative overspray separation technology provides substantial
energy savings and reduction of environmental burden.durr logo Paint Booth and Air Supply Unit

EcoDryScrubber is an economically and ecologically efficient dry separation system. It achieves high efficiency through dry removal of paint overspray during the paint application process in connection with recirculating the spray booth process air.
ecodry1 Paint Booth and Air Supply Unit
Stable painting process opens the way for global response.

Re-circulation of spray booth process air is the key to a globally stable process, resulting in constant application quality. Whether running the plant in India – in 35℃ and extremely high humidity, or in Russia – in minus 20℃ and dry air, a stable temperature and humidity in the paint application process area can be held without effort. The small amount of conditioned fresh air makes the process practically climate independent.
EcoDryScrubber saves resources, stabilizes the painting process and at the same lowers investment and costs per unit.
